USB

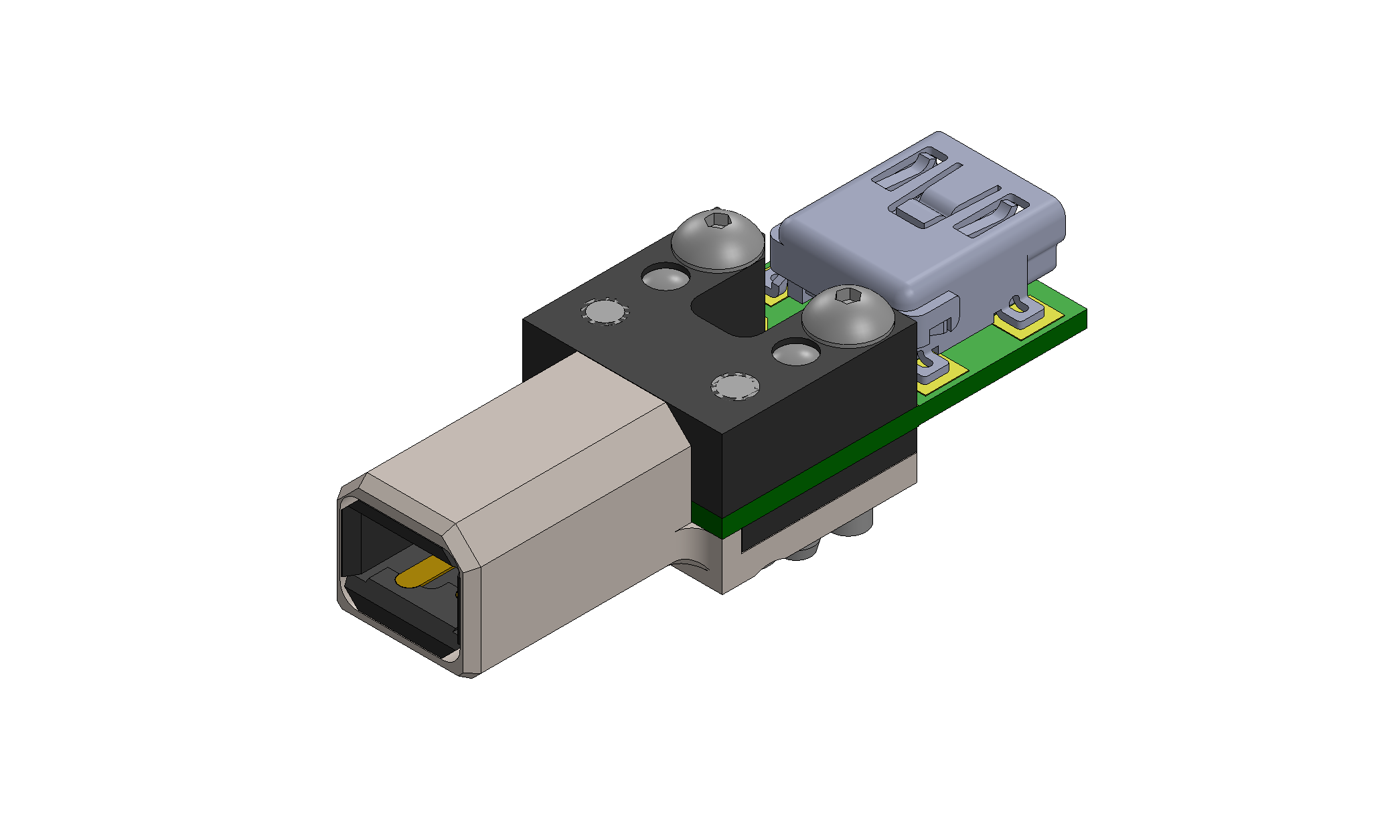

USB Mini-B Test Connector

  • USB Mini-B connector between a DUT and a test system
Connector type: USB 2.0 Mini-B
Orientation: Straight
P/N: MA090828
MORE INFO
DATASHEET

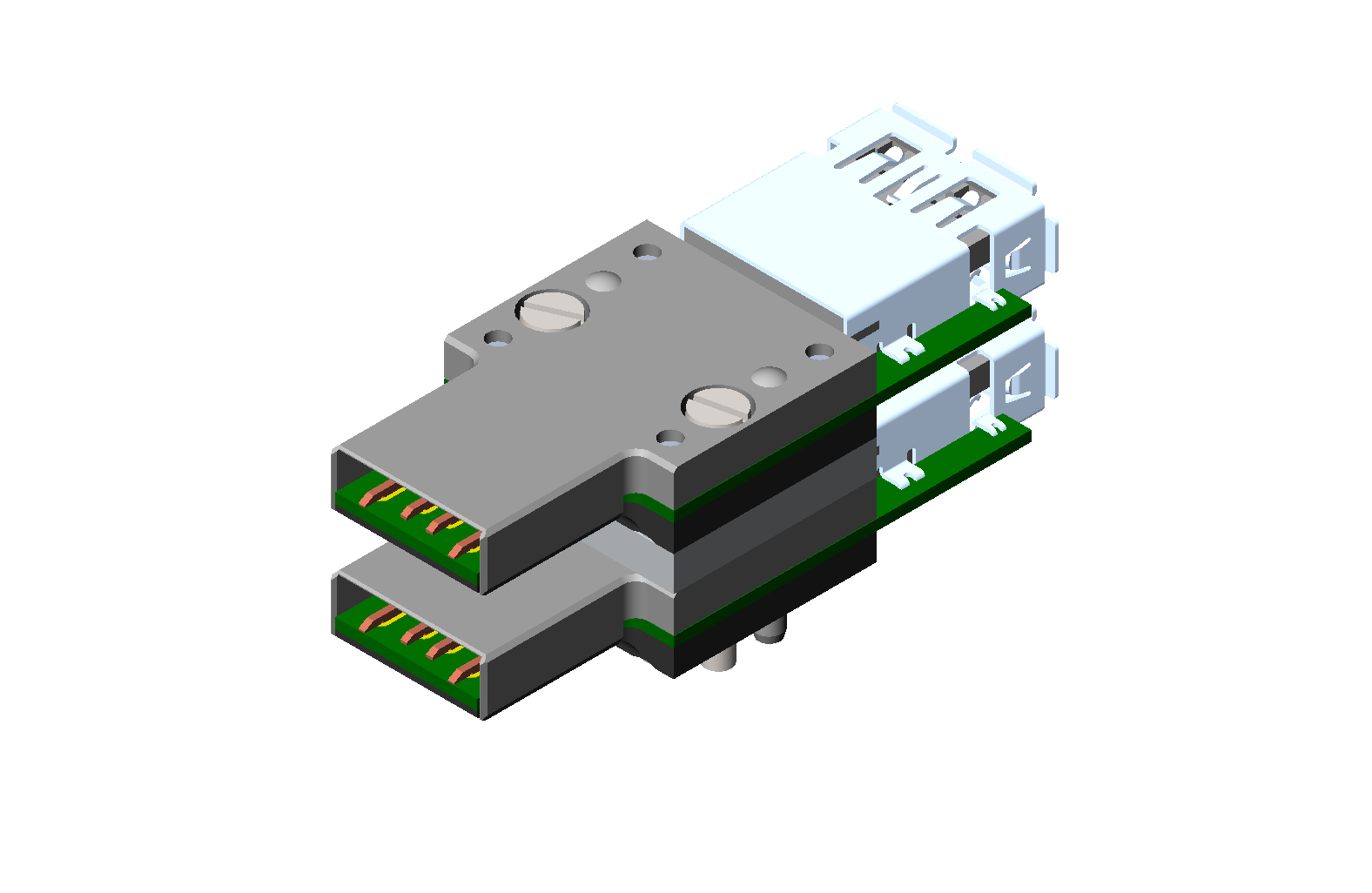

USB 2.0 Type-A Test Connector

  • USB 2.0 Type-A connector between a DUT and a test system
  • Low mating force
Connector type: USB 2.0 Type-A
Orientation: Straight
P/N: MA087283
MORE INFO
DATASHEET

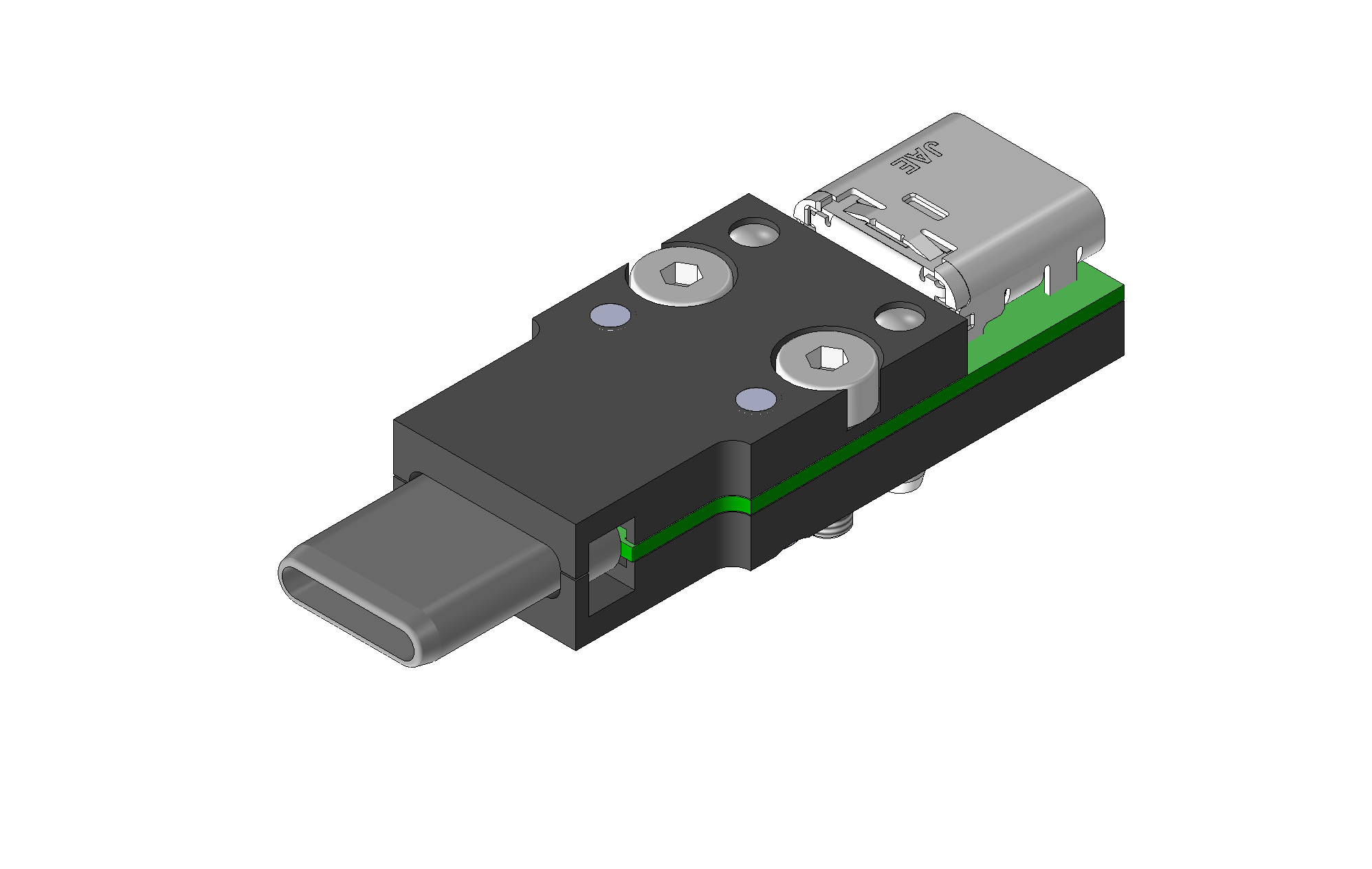

USB Type C Narrow Test Connector

  • USB Type-C connector between a DUT and a test system
  • Extended non-metal tip
  • Low mating force
  • Minimal body width
Connector type: USB-C
Orientation: Straight
P/N: MA084983
MORE INFO
DATASHEET

USB Type C Test Connector

  • USB Type-C connector between a DUT and a test system
  • Extended non-metal tip
  • Low mating force
Connector type: USB-C
Orientation: Straight
P/N: MA066774
MORE INFO
DATASHEET

Micro-USB 2.0 Test Connector

  • Micro-USB 2.0 connector between a DUT and a test system
Connector type: Micro-USB 2.0
Orientation: Straight
P/N: MA008072
MORE INFO
DATASHEET

High Current Micro-USB 2.0 Test Connector

  • Micro-USB 2.0 connector between a DUT and a test system
  • Extra connector for max 4A supply to DUT
Connector type: Micro-USB 2.0
Orientation: Straight
P/N: MA006031
MORE INFO
DATASHEET

Micro-USB 2.0 Test Connector Right

  • Micro-USB 2.0 connector between a DUT and a test system
Connector type: Micro-USB 2.0
Orientation: Right
P/N: EM077973-0
MORE INFO
DATASHEET

Micro-USB 2.0 Test Connector Left

  • Micro-USB 2.0 connector between a DUT and a test system
Connector type: Micro-USB 2.0
Orientation: Left
P/N: EM077972-0
MORE INFO
DATASHEET

USB 3.0 Type-A Test Connector

  • USB 3.0 Type-A connector between a DUT and a test system
  • Also compatible with USB 2.0 Type-A
Connector type: USB 3.0 Type-A
Orientation: Straight
P/N: MA033469
MORE INFO
DATASHEET

USB Type C Test Connector

  • USB Type-C connector between a DUT and a test system
Connector type: USB-C
Orientation: Straight
P/N: MA009253
MORE INFO
DATASHEET

USB Type C Test Connector Long

  • USB Type-C connector between a DUT and a test system
  • Longer tip for DUTs with thick casing
Connector type: USB-C
Orientation: Straight
P/N: MA024613
MORE INFO
DATASHEET

USB Type C Test Connector Left

  • USB Type-C connector between a DUT and a test system
Connector type: USB-C
Orientation: Left
P/N: MA012212
MORE INFO
DATASHEET

USB Type C Test Connector Right

  • USB Type-C connector between a DUT and a test system
Connector type: USB-C
Orientation: Right
P/N: MA012150
MORE INFO
DATASHEET

Power and Audio

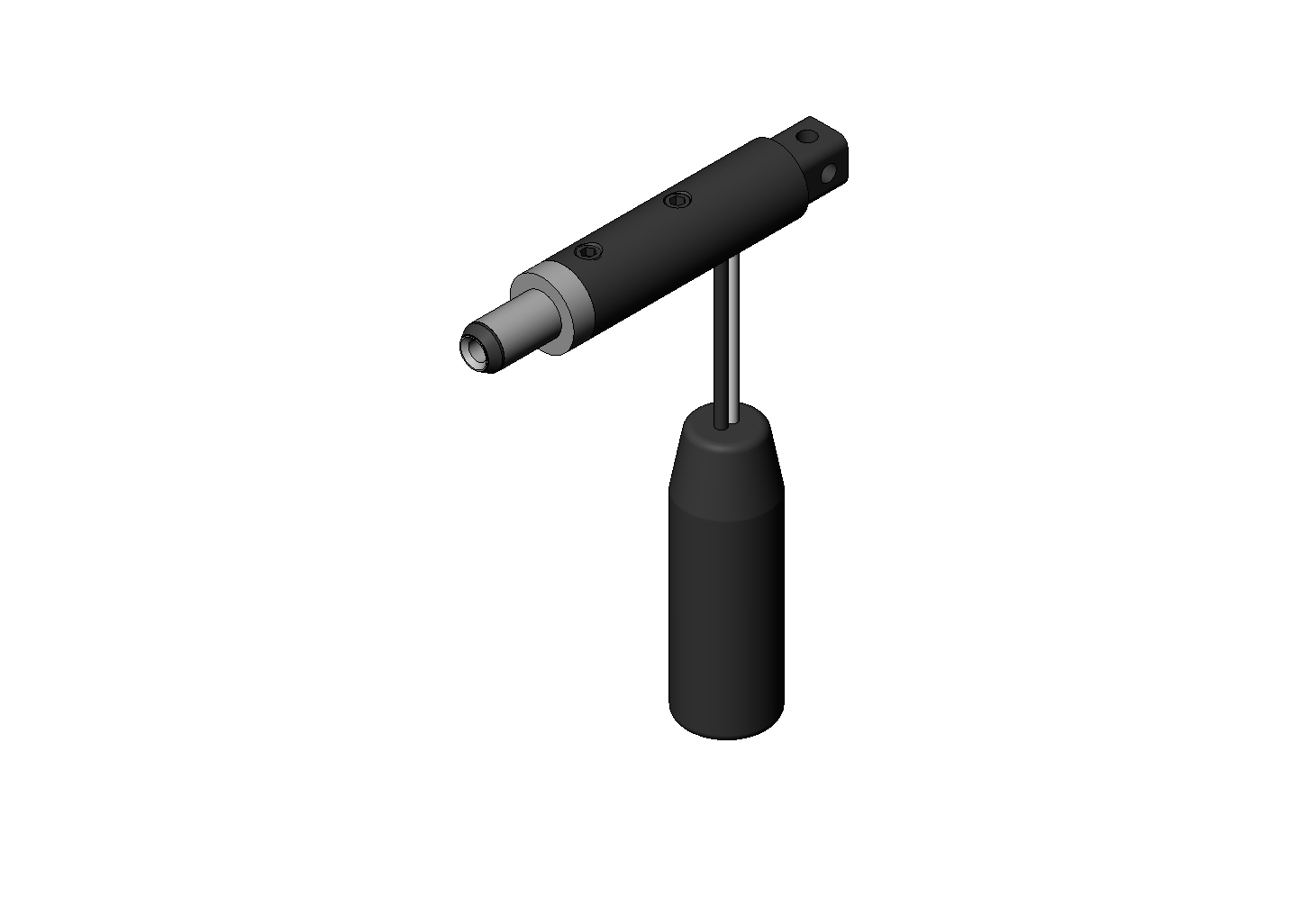

DC Test Connector

  • 2.5/5.5mm DC connector between a DUT and a test system
Connector type: 2.5/5.5mm DC Plug
Orientation: Flexible
P/N: MA009073
MORE INFO
DATASHEET

3.5mm Audio Test Connector

  • 4-pole audio connector between a DUT and a test system
Connector type: 4-pole 3.5mm plug
Orientation: Flexible
P/N: EM059575-0
MORE INFO
DATASHEET

TOSLINK Test Connector

  • TOSLINK optical connector between a DUT and a test system
Connector type: TOSLINK
Orientation: Flexible
P/N: MA009068
MORE INFO
DATASHEET

Networking

Modular 8P8C Test Connector Flipped

  • RJ45 connector between a DUT and a test system
  • Space saving unshielded receptacle
  • Receptacle flipped to opposite side of plug
Connector type: 8P8C
Orientation: Straight
P/N: MA036427
MORE INFO
DATASHEET

Modular 6P6C Test Connector

  • RJ11/RJ14/RJ25 connector between a DUT and a test system
Connector type: 6P6C
Orientation: Straight
P/N: MA009685
MORE INFO
DATASHEET

Modular 8P8C Test Connector

  • RJ45 connector between a DUT and a test system
  • Space saving unshielded receptacle
Connector type: 8P8C
Orientation: Straight
P/N: MA014781
MORE INFO
DATASHEET

Modular 8P8C Test Connector Shielded

  • RJ45 connector between a DUT and a test system
  • Shielded receptacle
Connector type: 8P8C
Orientation: Straight
P/N: MA002667
MORE INFO
DATASHEET

Misc

eSATA Test Connector

  • eSATA connector between a DUT and a test system
Connector type: eSATA
Orientation: Straight
P/N: MA019682
MORE INFO
DATASHEET

LTNG Test Connector

  • LTNG connector between a DUT and a test system
Connector type: LTNG
Orientation: Straight
P/N: MA015028
MORE INFO
DATASHEET

LTNG Test Connector Right

  • LTNG connector between a DUT and a test system
Connector type: LTNG
Orientation: Right
P/N: MA013244
MORE INFO
DATASHEET

HDMI & DisplayPort

Micro HDMI Test Connector

  • HDMI Type-D connector between a DUT and a test system
Connector type: HDMI-D
Orientation: Straight
P/N: MA022676
MORE INFO
DATASHEET

Mini HDMI Test Connector

  • HDMI Type-C connector between a DUT and a test system
Connector type: HDMI-C
Orientation: Straight
P/N: MA019427
MORE INFO
DATASHEET

Mini HDMI Test Connector Pin Headers

  • HDMI Type-C connector between a DUT and a test system
  • Breakout traces to pin headers
Connector type: HDMI-C
Orientation: -
P/N: MA015236
MORE INFO
DATASHEET

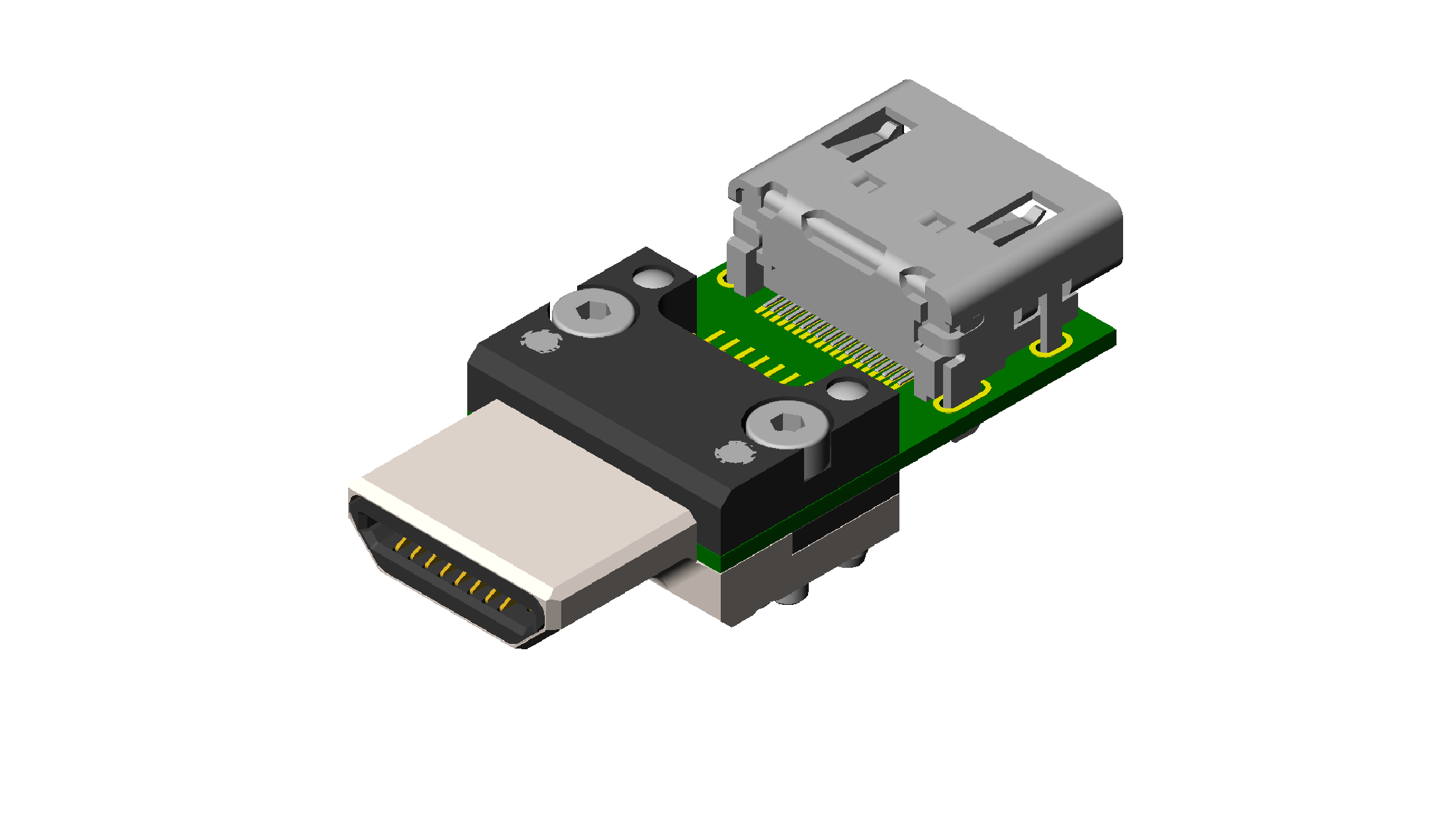

HDMI Type-A Test Connector

  • HDMI Type-A connector between a DUT and a test system
Connector type: HDMI-A
Orientation: Straight
P/N: MA002470
MORE INFO
DATASHEET

Mini Displayport Test Connector

  • Mini Displayport connector between a DUT and a test system
Connector type: Mini Displayport
Orientation: Straight
P/N: MA010395
MORE INFO
DATASHEET

Displayport Test Connector

  • Displayport connector between a DUT and a test system
Connector type: Displayport
Orientation: Straight
P/N: MA018534
MORE INFO
DATASHEET

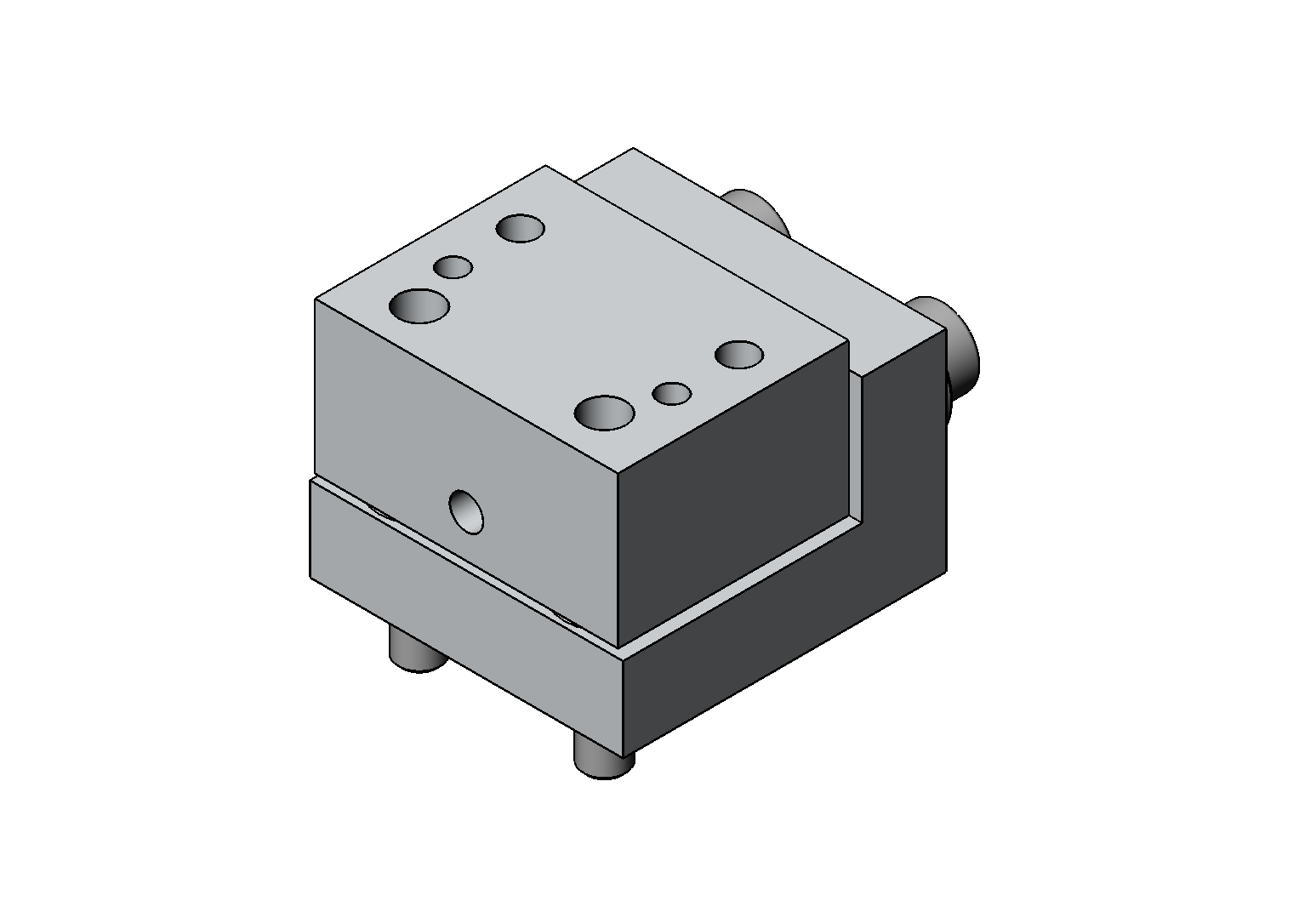

Float Units and Holders

Float unit for 6P6C Test Connector

  • Compensates misalignments between DUT and test mechanics
Float for: 6P6C Plug
P/N: MA093536
MORE INFO
DATASHEET

Float unit for Displayport Test Connector

  • Compensates misalignments between DUT and test mechanics
Float for: Displayport Plug
P/N: MA092681
MORE INFO
DATASHEET

Float unit for USB 2.0 Type-A Test Connector

  • Compensates misalignments between DUT and test mechanics
Float for: USB2-A Plug
P/N: MA092675
MORE INFO
DATASHEET

Float unit for USB 3.0 Type-A Test Connector

  • Compensates misalignments between DUT and test mechanics
Float for: USB3-A Plug
P/N: MA092671
MORE INFO
DATASHEET

Float unit for Mini-USB Test Connector

  • Compensates misalignments between DUT and test mechanics
Float for: Mini-USB Plug
P/N: MA091628
MORE INFO
DATASHEET

Float unit for LTNG Test Connector

  • Compensates misalignments between DUT and test mechanics
Float for: LTNG Plug
P/N: MA085951
MORE INFO
DATASHEET

Float unit for RJ45 Test Connector

  • Compensates misalignments between DUT and test mechanics
  • For unshielded Bluelec RJ45 test plugs
Float for: RJ45 Plug
P/N: MA085139
MORE INFO
DATASHEET

Float unit for HDMI Type-A Test Connector

  • Compensates misalignments between DUT and test mechanics
Float for: HDMI-A Plug
P/N: MA085130
MORE INFO
DATASHEET

Float unit for USB Type-C Test Connector

  • Compensates misalignments between DUT and test mechanics
Float for: USB-C Plug
P/N: MA017954
MORE INFO
DATASHEET

Audio Plug Holder

  • Rotating holder for Audio Test Plug
Holder for: 3.5mm 4-pole audio plug
P/N: EM061275-1
MORE INFO
DATASHEET

Float unit for Micro USB Test Connector

  • Compensates misalignments between DUT and test mechanics
Float for: Micro USB Plug
P/N: MA030684
MORE INFO
DATASHEET

Float unit for Mini Displayport Test Connector

  • Compensates misalignments between DUT and test mechanics
Float for: mDP Plug
P/N: MA030013
MORE INFO
DATASHEET

Float unit for Micro HDMI Test Connector

  • Compensates misalignments between DUT and test mechanics
Float for: HDMI-D Plug
P/N: MA030005
MORE INFO
DATASHEET

Float unit for Mini HDMI Test Connector

  • Compensates misalignments between DUT and test mechanics
Float for: HDMI-C Plug
P/N: MA030010
MORE INFO
DATASHEET
